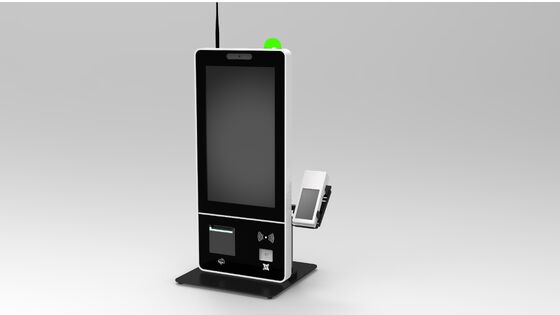

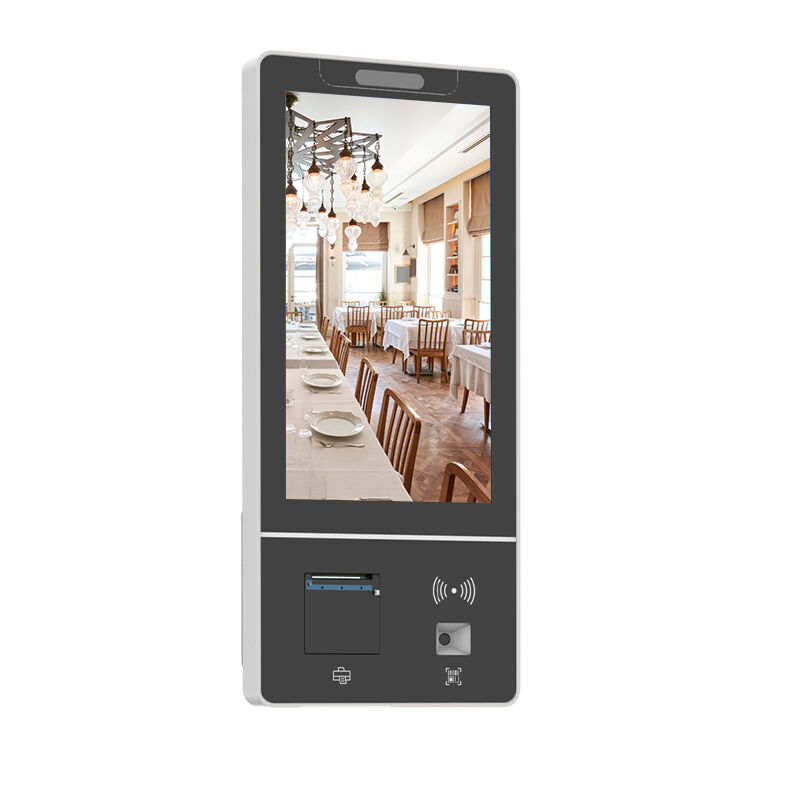

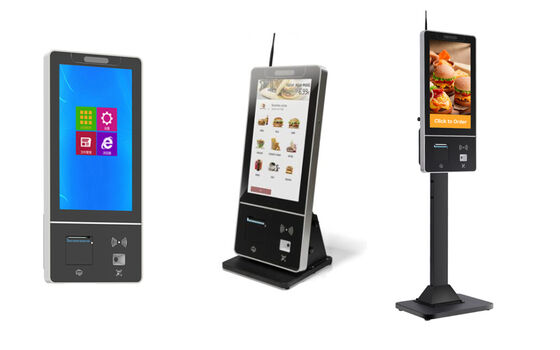

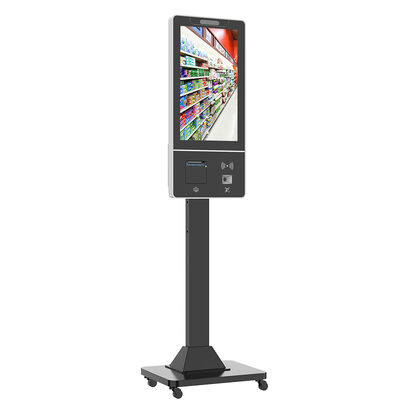

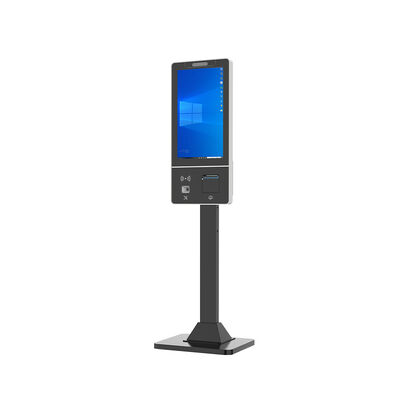

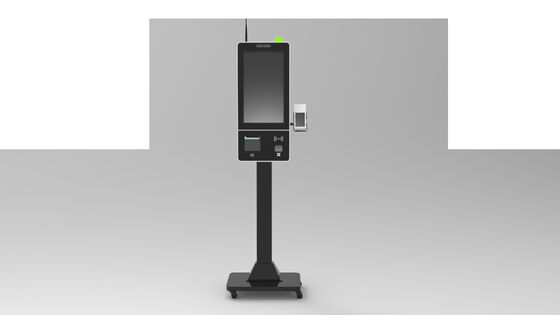

Self Service Kiosk with 1920x1080 Resolution Intel Core I5 and Wall Mount for Efficient Ordering System
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | SUIE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $585-635 |
|
Detail Information |
|||
| Resolution: | 1920X1080 | Camera Function: | Product Scanning |
|---|---|---|---|
| CPU: | Intel Core I3, RK3568 Quad Core, Intel Core I5, Intel Core I7 | Material: | Metal Case, Toughened Glass Panel |
| Mounting Type: | Wall Mount | Operation System: | Linux, Android, Windows |
| RAM: | 2GB DDR3, 4GB DDR3, 8GB DDR3 | Screen Type: | LED |
| LCD Size: | 21.5" / 24"/ 32" Portrait Orientation IPS LCD | Brightness: | 280-300 NITS |
| Touch Screen: | True Flat, Capacitive Multi-touch | USB Ports: | 5 X USB 2.0 Type A, 1 X USB 3.0 Type A |
| LAN Port: | RJ-45,10/100/1000Mbps Giga Ethernet | Operating Temperature: | 0ºC ~ 40ºC |
| Storage Temperature: | -20ºC ~ 60ºC | ||
| Highlight: | 1920x1080 Resolution Self Service Kiosk,Intel Core I5 Self Checkout Kiosk,Wall Mount Ordering System Kiosk |
||
Product Description
Self-Service Kiosk & POS Software System
Complete self-checkout kiosk solution with restaurant ordering system and POS software for streamlined operations.
Product Overview
Technical Specifications
| System | Specifications |
|---|---|
| Operating System | Windows 10 / Android 11 |
| Processor | Intel® J1900, 2M Cache, 2.0 GHz Intel® J6412, 2M Cache, 2.0 GHz Intel® Core™ i3-1115G4, 3M Cache, 2.40 GHz RK3568 Cortex A17 Quad core 2.0 GHz |
| System Memory | Windows: 1 x DDR4, SO-DIMM, 4GB (Max. 16GB) Android: DDR4, 4GB, on board |
| Storage | Windows: 128GB; Android: 32GB |
LCD Touch Panel
| LCD Size | 21.5" / 24"/ 32" Portrait Orientation IPS LCD |
| Brightness | 280-300 NITS |
| Resolution | 1920*1080; 16:9 |
| Touch Screen | True Flat, Capacitive Multi-touch |
I/O Ports
| USB | 5 x USB 2.0 Type A, 1 x USB 3.0 Type A |
| Serial Port | 3 x RS232 (5V/12V) |
| LAN | RJ-45, 10/100/1000Mbps Giga Ethernet |
| HDMI | Additional HDMI INPUT output up to 1920*1200@60HZ |
| Audio Port | 1 x Line-out; 1 x Mic-In |
| Video Port | 1 x VGA |
Additional Features
| Speaker | HD Audio: 2 x 5W (8Ω) Internal Speaker |
| Power | Power cable: 110-240V |
Modular Functions
| Scanner | Bar/2D Code small window |
| Printer | 80mm thermal printer, embedded Printing width: 72mm Cut method: Partial cut Print speed: 170 mm/s (max) Paper feed method: Easy loading Paper roll diameter(max): 80 mm Epson OPOS driver |
| POS Terminal Holder | Compatible version |
| WiFi | IEEE802.11b/g/n 2.4G |
Environmental Specifications
| Operating Condition | 0ºC ~ 40ºC, 10% ~ 90% RH, non-condensing |
| Storage Condition | -20ºC ~ 60ºC, 10% ~ 90% RH, non-condensing |
After Sales Service
1 Year warranty (RMA service, remote maintenance and video manual)
Packaging & Delivery
| Package Material | Customized Neutral Hardened Carton, goods wrapped by high quality polyfoam |
| Package Dimensions |
21.5" Self order kiosk + floor stand: 100*40*50cm, 36kg GW, 12pcs/pallet 24" Self order kiosk + floor stand: 100*40*53cm, 37kg GW, 12pcs/pallet 32" Self order kiosk + floor stand: 115*40*60cm, 46kg GW, 8pcs/pallet |
