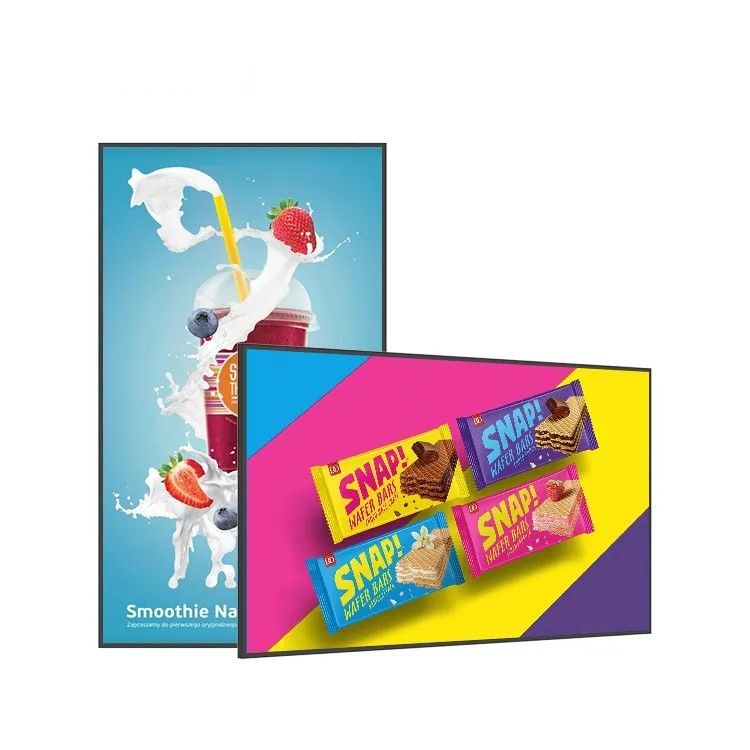

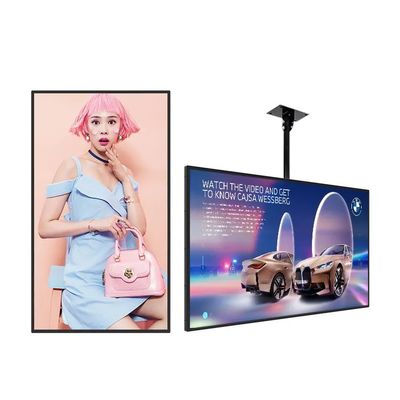

Capacitive Touch Screen Monitor Display IP55 32 Inch Touch Screen Panel Kiosk
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Shareme |
| Certification: | CE，ROHS |
| Model Number: | SHM-BGXS32 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Cardboard boxes |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 |
|
Detail Information |
|||
| Aspect Ratio: | 16:9 | Brightness: | 350 Cd/m2 |
|---|---|---|---|
| Color Gamut: | 72% NTSC | Contrast Ratio: | 1000:1 |
| Dimensions: | 14.1 X 8.7 X 0.7 Inches | Inputs: | HDMI, VGA, DVI |
| Mounting Options: | VESA | Power Consumption: | 25W |
| Resolution: | 1920x1080 | Response Time: | 5ms |
| Size: | 32inch | Touch Interface: | USB |
| Touch Points: | 10-point | Touch Technology: | Capacitive |
| High Light: | Touch Screen Monitor Display IP55,Capacitive Touch Screen Monitor Display,IP55 32 Inch Touch Screen Panel |
||
Product Description
32inch touch screen monitor display capacitive touch for kiosk touchscreen panel IP55
Product parameters
| Product Parameters | |
| Product Name: | Touch Screen Monitor |
| Display Type: | Active Matrix TFT LCD, LED Backlight |
| Touch Technology: | Projected Capacitive (10 Points) |
| Case/ frame Color: | Black |
| The Diagonal Dimension: | 32inch |
| Aspect Ratio: | 16:9 |
| Overall Dimensions: | 698mm(W) x392 mm(H),Thickness: 57 mm) |
| Active Area: | 476.6mm(H) x 268.1mm(V) |
| Display Colors: | 16.7M |
| Resolution(pixel): | 1920 x 1080 @ 60Hz |
| Brightness(Standard): | 250 cd/m² |
| Response time: | 5 ms |
| View Angle(from center): | L/R:89/89;U/D:89/89 (Typ.)(CR≥10) |
| Contrast Ratio: | 1000:1(Typ.) |
| Input: | VGA,DVI,HDMI(optional DP) |
| Input Video Signal Connector: | Female head DE - 15 connector, female head DVI - D, Dual -Link connector, female head HD connector |
| OSD: | Digital OSD |
| User Controls: | OSD Button: Menu, Up, Down, Select, Power |
| Power: | Power connector (on power adapter) - Type: DC cartridge Plug: Cartridge OD: 5.5 mm (± 0.1mm); Needle Inner Diameter:2.1 mm (± 0.1 mm); Cartridge Length: 9.5 mm (± 0.5 mm) |
| External DC, input voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS (for all in one PC) - Type: DC cartridge receptacle; Cartridge ID: 5.5 mm(± 0.3 mm); Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridge depth: 8.0 mm (± 0.3mm); | |
| Temperature: | Work: 0 ° C ~ 40 ° C; Storage: -20 ° C ~ 60 ° C |
| Humidity: | Work: 20% to 80%; Storage: 10% to 90% |
| Installation options: | Open Bracket Mounting,VESA Mounting; |
Feature
1.touch with glove,touch screen could be operated with glove,onscreen water onscreen oil.
2.touch screen monitor could be operated under the teperature from -20º-60º
3.Please avoid placing it outdoors when the sunlight is strong；
Want to Know more details about this product
