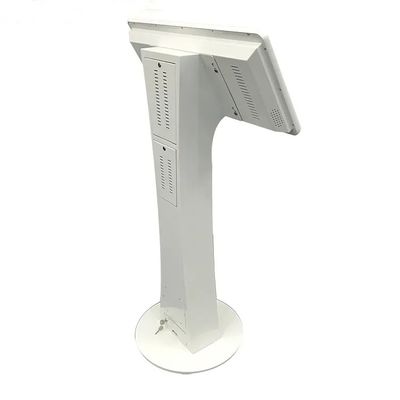

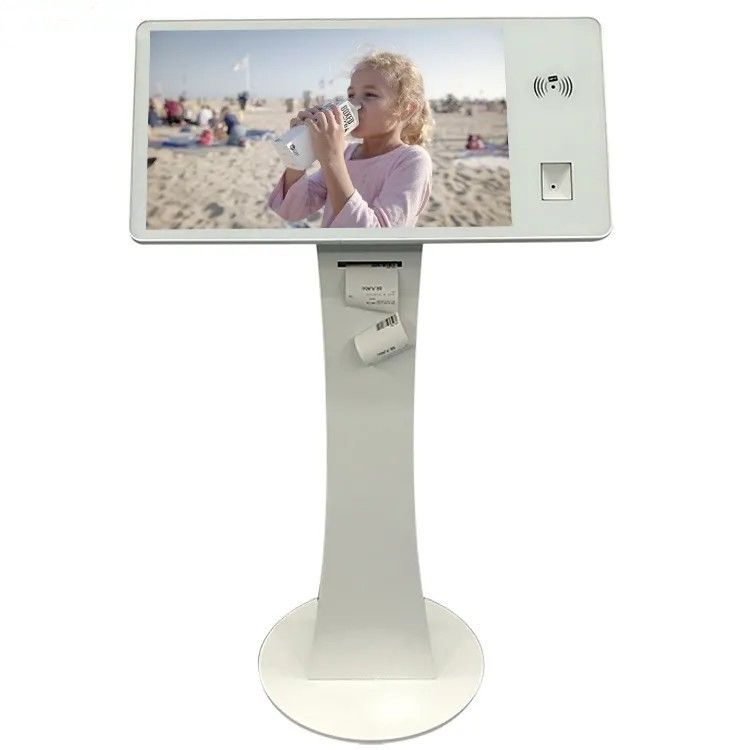

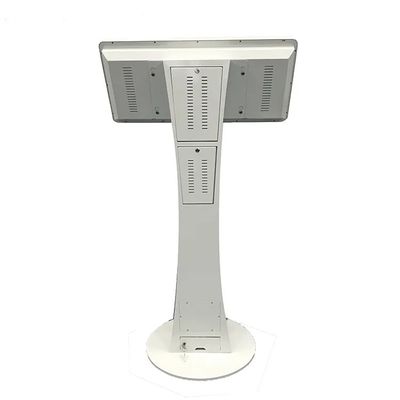

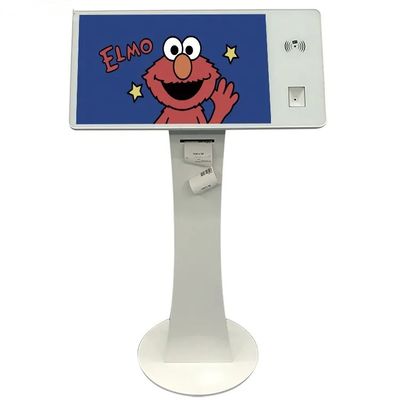

22 Inch Capacitive Touch Screen Self Service Kiosk with QR Code Scanner and Customizable Options
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Shareme |
| Certification: | CE，ROHS |
| Model Number: | SHM-QD22 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 500$ |
| Packaging Details: | Cardboard boxes |
| Delivery Time: | 18-20days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 10000 |
|
Detail Information |
|||
| Barcode Scanner: | Optional | Brightness: | 250cd/m2 |
|---|---|---|---|
| CPU: | Intel Core I5 | Camera: | 2MP |
| Card Reader: | Optional | Fingerprint Scanner: | Optional |
| Material: | Metal | Network: | WiFi/LAN |
| OS: | Windows/Linux | RAM: | 8GB |
| Resolution: | 1920*1080 | Size: | Customized |
| Speaker: | 2W | Storage: | 128GB SSD |
| Touch Screen: | Capacitive | ||
| Highlight: | 22 Inch Touch Screen Self Service Kiosk,Touch Screen Self Service Kiosk Customized,22 Inch Stand Alone Kiosk |
||
Product Description
22 Inch Stand Alone Touch Screen Self Service Kiosk
Customized self-service kiosk featuring QR code scanner, receipt printer, and NFC capabilities for versatile commercial applications.
Panel Specifications
| Item No. | Self Order Kiosk |
|---|---|
| Screen Size | 297×527mm (24inch) 337×599mm (27inch) / Customized |
| Screen Resolution | 1920×1080 |
| Display Color | 16.7M |
| Contrast | 3000:1 |
| Brightness | 250 nits |
| Visual Angle | 178°/178° |
| Response Time | 3ms |
| Touch Screen | 10-point capacitive touch screen |
System Configuration
| Main Board | Android RK3288, COTEX-A17 Quad-Core, 1.8 GHZ |
|---|---|
| RAM | DDR3, 4GB (2GB DDR3 available, 4GB DDR3 optional) |
| ROM | 8G EMMC 5.0 (16GB/32GB/64GB optional) |
| Interface | MIPI output×1; eDP output×1; LVDS output1×1; 5×USB; TTL serial-port×3; Amplifier output |
| Network Support | 100M Ethernet, WIFI, Bluetooth 4.0 (4G & external GPS optional) |
| Panel Life | Above 50,000 hours |
| Operating System | Android 7.1 (Upgrade to Android 10 available) |
Additional configurations available: Android RK3399, J1900, i3, i5, i7 series and other custom configurations.
Appearance Specifications
| Overall Size | 850×403×85mm (24inch); 940×444×106mm (27inch) |
|---|---|
| Surface | Anti-scratched tempered glass |
| Color | White |
| Power Supply | AC 110-240, 50-60Hz |
| Honeycomb Packing | 950×503×185mm / 26kg (24inch) 1070×210×590mm / 27kg (27inch) |
Integrated Features
- Front opening thermal printer with automatic cutter (58 & 80mm paper)
- QR code / Barcode scanner
- Slot for POS machine (POS machine provided by customer)
- Optional: 2 megapixels camera, monocular & binocular cameras for face recognition
- Optional: IC card reader, RFID reader, NFC card reader
Functional Capabilities
Plays advertising when idle, recommends special packages and discounts. Supports multiple self-service applications including restaurant ordering, store payments, pharmacy checkout, and resort services.
Applications
Self order kiosk for restaurants, stores, supermarkets, new retail, stations, airports, and various commercial environments.
Frequently Asked Questions
Is your company a real manufacturer?
Our company is a professional manufacturer in China, and we welcome you to visit our factory anytime.
How is the quality of the self order kiosk?
Our self order kiosks undergo strict quality control testing before shipping to ensure high quality standards.
Does the self order kiosk only use for mall?
Our self order kiosks are suitable for multiple environments including malls, hospitals, metro stations, banks, cinemas, airports, and more.
