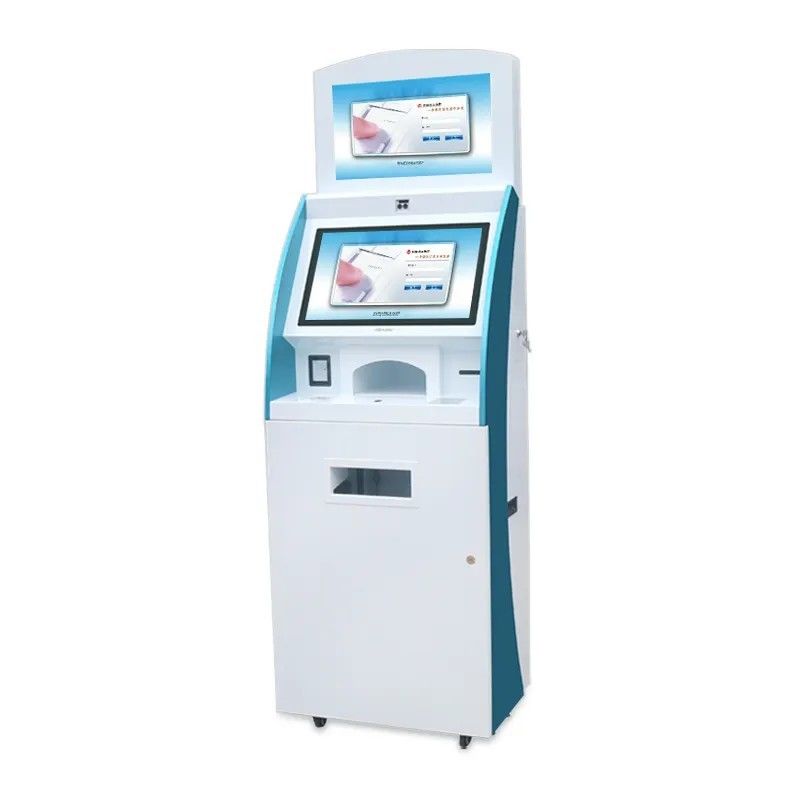

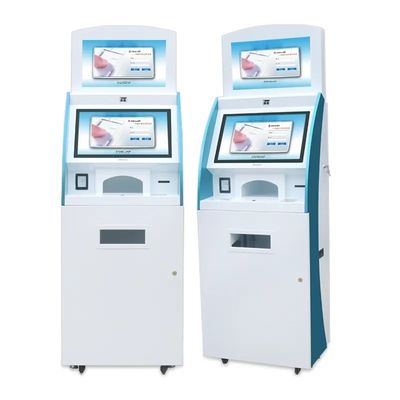

22 Inch Free Standing Touch Screen Kiosk with Capacitive Touch for Self Service Payment
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Shareme |
| Certification: | CE，ROHS |
| Model Number: | SHM-VD19Z |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 1800$ |
| Packaging Details: | Cardboard boxes |
| Delivery Time: | 20-25days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 10000 |
|
Detail Information |
|||
| Aspect Ratio: | 16:9 | Brightness: | 250 Cd/m² |
|---|---|---|---|
| Contrast Ratio: | 1000:1 | Display Resolution: | 1920 X 1080 |
| Display Size: | 22inch | Display Technology: | LED |
| Inputs: | HDMI, VGA, USB | Power Consumption: | 25W |
| Response Time: | 5 Ms | Speakers: | 2 X 2W |
| Touch Points: | 10 | Touch Screen: | Yes |
| Touch Technology: | Capacitive | VESA Mount: | Yes |
| Viewing Angle: | 178°/178° | ||
| Highlight: | Free Standing Touch Screen Payment Kiosk,Touch Screen Payment Kiosk 22 Inch,Capacitive Self Service Kiosk Machine |
||
Product Description
Free Standing Touch Screen Payment Kiosk
22-Inch Capacitive Self-Service Kiosk Machine
22-inch Free Standing Touch Screen Kiosk with QR Code Scanner, Printer & Self-Service Payment System
Optional Hardware Components
- A4 Laser Printer
- Card Dispenser
- Metal Keyboard with Trackball
- Web Camera
- Barcode Scanner
- Fingerprint Reader
- RFID Card Reader
Product Specifications
| Component | Specification |
|---|---|
| Computer | Industrial Host: Mother Board: Industrial PC CPU: Intel i3 (upgradeable as option) RAM: 4GB (upgradeable as option) Hard Disk: 320GB (upgradeable as option) More sizes and types of PC available upon request |
| Monitor & Screen for Ads | TFT LCD: 15", 17" or 19" optional Brightness: 300~1200nits Contrast: 450:1~1000:1 2nd Screen: 15", 17" or 19" optional with independent broadcasting system Resolution: 15" 1024*768, 17" 1280*1024, 19" 1280*1024 More sizes between 20~46" available upon request |
| Touchscreen | SAW Touch: 15", 17" or 19" optional Resolution: 4096*4096 More types of touch screen available: capacitive, resistive or IR optional |
| Input Device | 3DES Metal EPP: 16 keys, waterproof, dustproof, vandal proof Metal Keyboard: 64 keys, waterproof, dustproof, vandal proof |
| Card Reader | Motorized/Dip: EMV proved Magcard /IC reader; Shutter (motorized type); Confiscate card (motorized type) |
| Printer | Thermal Printer: Width 80mm; black mark sensor; full/half cutter Dot Matrix: Width 80mm; black mark sensor; full/half cutter |
| Speaker | Multimedia: Left-right bi-channel amplified output |
| Enclosure | Cold Roll Steel: Steel powder coated front Power coated back cover |
| OS & Drivers | Windows XP+SP2 (WINCE, Linux, Unix, WIN2000) and all related drivers available |
| Packing | Bubble Foam, carton, wooden case |
| Other Optional | UPS, Video Camera, Alarm System, Barcode Scanner, Track Ball, Photo Printer, Cash Acceptor, Card Dispenser, Check Acceptor, Infrared, Bluetooth, PSAM Card, etc. |
Frequently Asked Questions
About OEM:
Welcome! We have our own hardware factory and component engineers. Please send your own design and logo - we can manufacture according to your specifications and design requirements.
About Quality:
We maintain very strict quality control standards that ensure the goods we produce are always of the highest quality.
About Warranty:
1-year warranty with full responsibility for warranty coverage. We are very confident in our products - if any issues arise, we will address them immediately.
Want to Know more details about this product
