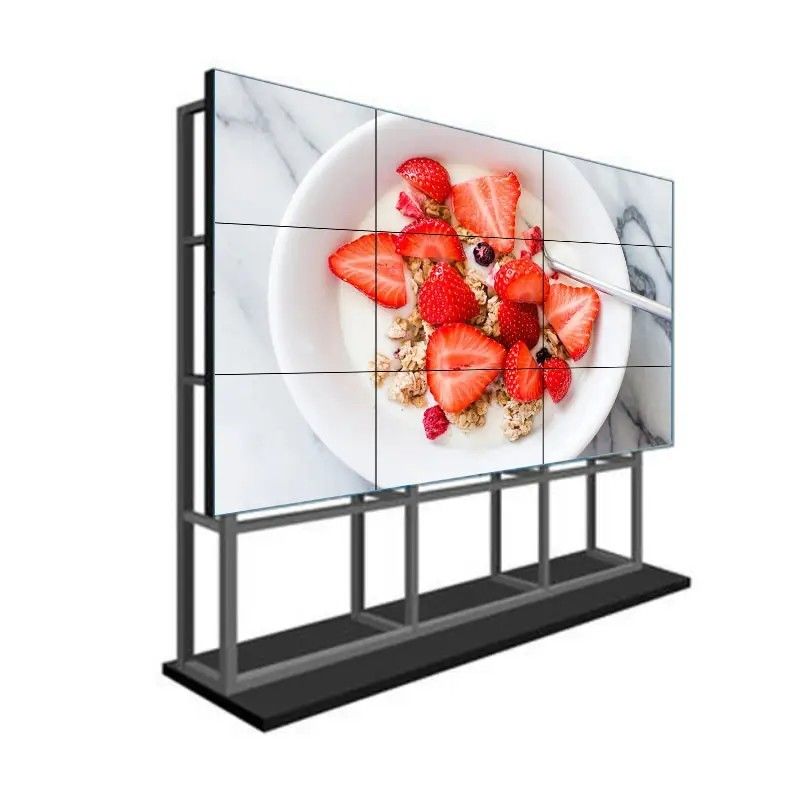

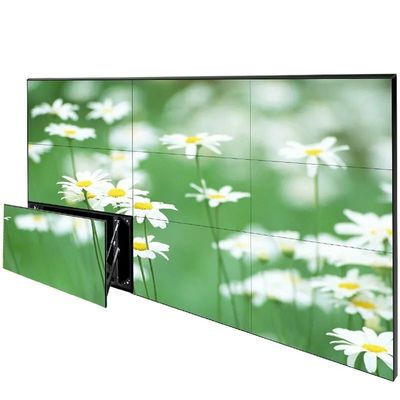

55 Inch LCD Splicing Wall with 4K Resolution and Narrow Edge Display for Video Wall Applications
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Shareme |
| Certification: | CE，ROHS |
| Model Number: | SHM-PJ55D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 600$ |
| Packaging Details: | Cardboard boxes |
| Delivery Time: | 18-20days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 10000 |
|
Detail Information |
|||
| Brightness: | 500cd/m2 | Contrast Ratio: | 5000:1 |
|---|---|---|---|
| Input Interface: | HDMI/DVI/VGA/AV/USB/YPbPr | Installation Method: | Wall Mounted/Desktop |
| Operating Temperature: | 0-50°C | Output Interface: | HDMI/VGA/AV/USB/YPbPr |
| Power Consumption: | 180W | Power Supply: | AC100-240V |
| Product Certification: | CE/FCC/RoHS | Product Name: | LCD Splicing Wall |
| Resolution: | 1920*1080 | Response Time: | 5ms |
| Screen Size: | 55 Inch | Storage Temperature: | -20-60°C |
| Viewing Angle: | 178° | ||
| Highlight: | 55 Inch LCD Split Screen,4K LCD Split Screen,55 Inch Splicing Video Wall |
||
Product Description
55 Inch LCD Split Screen Monitor 4K Resolution Splicing Video Wall
55-inch Splicing Video Wall LCD Split Screen Monitor
4K Resolution Narrow Edge Display with exceptional visual performance for professional video wall applications.
Video wall controllers make managing content and information across multiple screens easy. Create a powerful visual experience with pixel-perfect clarity using our latest video wall solutions. With an extra narrow bezel, Shareme video walls seamlessly recreate your desired content across almost any configuration style.
Technical Specifications
| Panel Brand | BOE |
| Display Size | 55 inch |
| Screen Contrast | 16:9 |
| Pixel Pitch | 0.53025(H) x 0.53025(W) |
| Response Time | 8ms |
| Physical Resolution | 1920(H)*1080(V) |
| Color Contrast | 4500:1 |
| Luminance | 500cd/m² |
| Display Area | 1212.23mm(H) x 680.83mm(V) |
| Color Depth | 16.7 million colors |
| Viewing Angle | H:178° V:178° |
| Signal Source Input | VGA*1, HDMI*1, DVI*1, Video(BNC)*2 |
| Control Input | RS232*1 |
| Other Inputs | IR remote control head / debug * 1 |
| Refresh Rate | Horizontal: 20-82kHz; Vertical: 55-75Hz |
| Compatible Videos | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Shell Material | Sheet Metal |
| Body Color | Black |
| Working Temperature | 0°C to 50°C |
| Non-operating Temperature | -20°C to 60°C |
| Working Humidity | 10% to 90% (non-condensing) |
| Non-working Humidity | 0% to 95% (non-condensing) |
| Noise Level | Operation mode <50dBA |
| Physical Seam | 3.5mm |
| Power Supply | AC 100-240V~/2-5A/60-50Hz |
| Power Consumption | Peak: ≤200W; Standard: ≤150W; Standby: ≤2W |
Frequently Asked Questions
What brand of screen are you using?
We use Samsung, LG, AUO, and CHIMEI screens to ensure high-quality display performance.
Do you have your own enclosure factory?
Yes, we operate our own enclosure factory with experienced structural engineers. We welcome OEM partnerships to provide you with the best screen solutions and custom shapes.
How can I contact you if you're not online?
If we're not available online, please use our alternative contact methods including email, phone, or Skype. We will respond to your inquiry as soon as possible.
