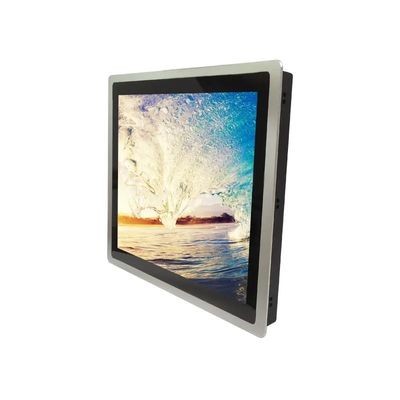

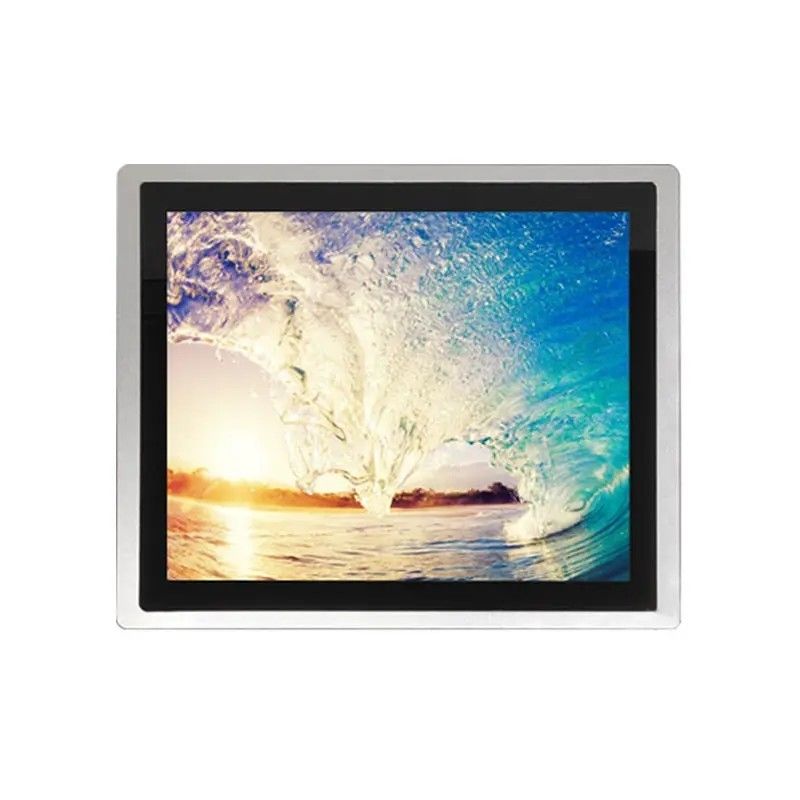

19-inch Industrial Touch Screen Monitor with IP65 Waterproof and 10-point Capacitive Touch Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Shareme |
| Certification: | CE，ROHS |
| Model Number: | SHM-BGGK22 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 300$ |
| Packaging Details: | Cardboard boxes |
| Delivery Time: | 7-10days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 10000 |
|
Detail Information |
|||
| Aspect Ratio: | 4:3 | Brightness: | 300 Cd/m2 |
|---|---|---|---|
| Contrast Ratio: | 1000:1 | Inputs: | HDMI, VGA, DVI |
| OS Compatibility: | Windows, MacOS, Linux | Response Time: | 5ms |
| Screen Size: | 19-inch | Speakers: | Yes |
| Touch Accuracy: | 2mm | Touch Activation Force: | No Pressure |
| Touch Points: | 10-point | Touch Technology: | Capacitive |
| VESA Mountable: | Yes | ||
| Highlight: | Industrial Touch Screen Monitor Display,19 Inch Touch Screen Monitor Display,Capacitive 19 Inch Touch Screen Monitor |
||
Product Description
19-inch Industrial Touch Screen Monitor
High-performance 19-inch capacitive touch screen monitor designed for industrial applications with robust construction and reliable 24/7 operation.
Key Features
- Fully enclosed dustproof design with IP65 front panel waterproof rating
- Aluminum alloy brushed metal front bezel with seamless construction
- Excellent heat dissipation and mechanical durability
- Multi-point PCAP touch panel with 2mm tempered glass for vandal resistance
- High-performance mainboard supporting 7x24 continuous operation
- VGA, HDMI, and DVI interfaces with USB touch connectivity
- 12-24V wide voltage support with anti-interference technology
- Ultra-thin 3mm front bezel ideal for embedded mounting
Technical Specifications
LCD Panel
| Panel Size | 17inch, 19inch, 22inch |
|---|---|
| Resolution | 1280 × 1024 |
| Aspect Ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness | 400+ cd/m² |
| Contrast Ratio | 1000:1 |
| View Angle | 80°/80°/80°/80° (R/L/U/D) |
Touch Panel
| Touchscreen Type | Projected Capacitive Touch (10 points) |
|---|---|
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch Response Time | 2ms |
| Working Life | >50 million times |
| Touch Options | 5-wire resistive touch, IR touch optional |

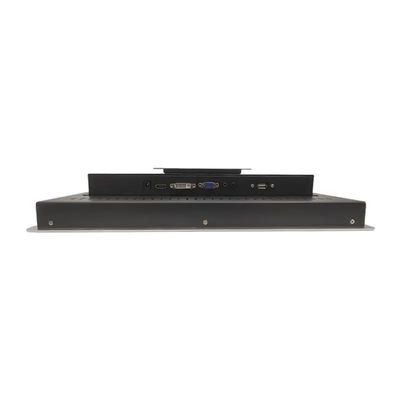

Signal Ports & Controls
| VGA | 1 × VGA |
|---|---|
| DVI | 1 × DVI |
| HDMI | 1 × HDMI |
| Audio In/Out | Optional |
| OSD Control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support Languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | WinXP, Win7/8/10, Linux, Mac OS X, Android, etc. |
Power & Enclosure
| External Power Supply | AC 100-240V, 50-60Hz |
|---|---|
| Working Voltage | DC 12V |
| Power Consumption | ≤35W |
| Material | Aluminum Alloy |
| Color | Black, Silver |

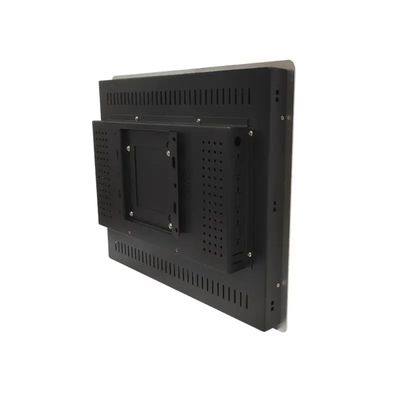

| VESA Mounting | 75×75mm / 100×100mm |
| IP Grade | Front panel IP65 waterproof |
Operating Environment
| Temperature Range | Operating: -10 to 60°C, Storage: -20 to 80°C |
|---|---|
| Relative Humidity | Operating: 10% to 80%, Storage: 5% to 90% |
Packing Details
| Net Weight | 4.5kg |
|---|---|
| Gross Weight | 6kg |
| Product Dimension | 41.4 × 34.5 × 6.3cm |
| Packing Size | 53 × 47 × 18cm |
| Accessories | Power adapter, VGA cable, USB touch cable, embedded screws, user manual, warranty card |
Mounting Options
Embedded mounting screws included. Wall mounting brackets and desk stand holder available as optional accessories.
Warranty & Support
- 1-Year Warranty: Comprehensive coverage with lifetime maintenance support
- First Year Service: Free maintenance and technical support with remote troubleshooting
- Technical Assistance: Our technicians provide guidance for repairs and supply necessary spare parts free of charge
- Return Service: If issues cannot be resolved remotely, we repair and return defective units within one week or provide replacement
- Post-Warranty Support: After the first year, replacement parts at factory cost with free maintenance services
- Bulk Order Benefits: Spare units provided for larger orders to ensure continuous operation
- Customer Service: Dedicated support team available via service hotline with 12-hour response commitment
